Industrial Automation Project

Remote PLC Automation System

A system designed to monitor and control industrial PLC-based processes remotely using embedded systems and web technologies.

System overview: PLC, ESP32 gateway, and web dashboard

Overview

This project establishes a Remote PLC Lab, allowing students to learn industrial automation from anywhere. By bridging physical hardware with a digital interface, it provides a hands-on learning experience without the need for a physical presence in the classroom.

Core Objectives

✔ Remote Control: Real-time monitoring and operation of PLC systems via the internet.
✔ IoT Integration: Embedded controllers and industrial protocols for seamless data access.
✔ Visual Feedback: Multi-angle camera interface for live observation of hardware responses.

Key Features

Remote PLC monitoring
Real-time data visualization
Web-based control interface
Alert and status monitoring

Technologies Used

PLC (Industrial Controller)
ESP32 / Embedded Controller
Communication Protocols (Modbus / HTTP / MQTT)
Web Interface (HTML, CSS, JS)

Working Principle

The system follows a client-server architecture where commands flow from the user interface to the PLC through an embedded gateway.

1

User enters ESP32 IP and credentials

→

2

Web connects to backend server

→

3

Server communicates with ESP32

→

4

User sends control commands

→

5

Server forwards to ESP32

→

6

ESP32 generates signals

→

7

PLC executes control logic

→

8

Feedback sent to dashboard

Project Gallery

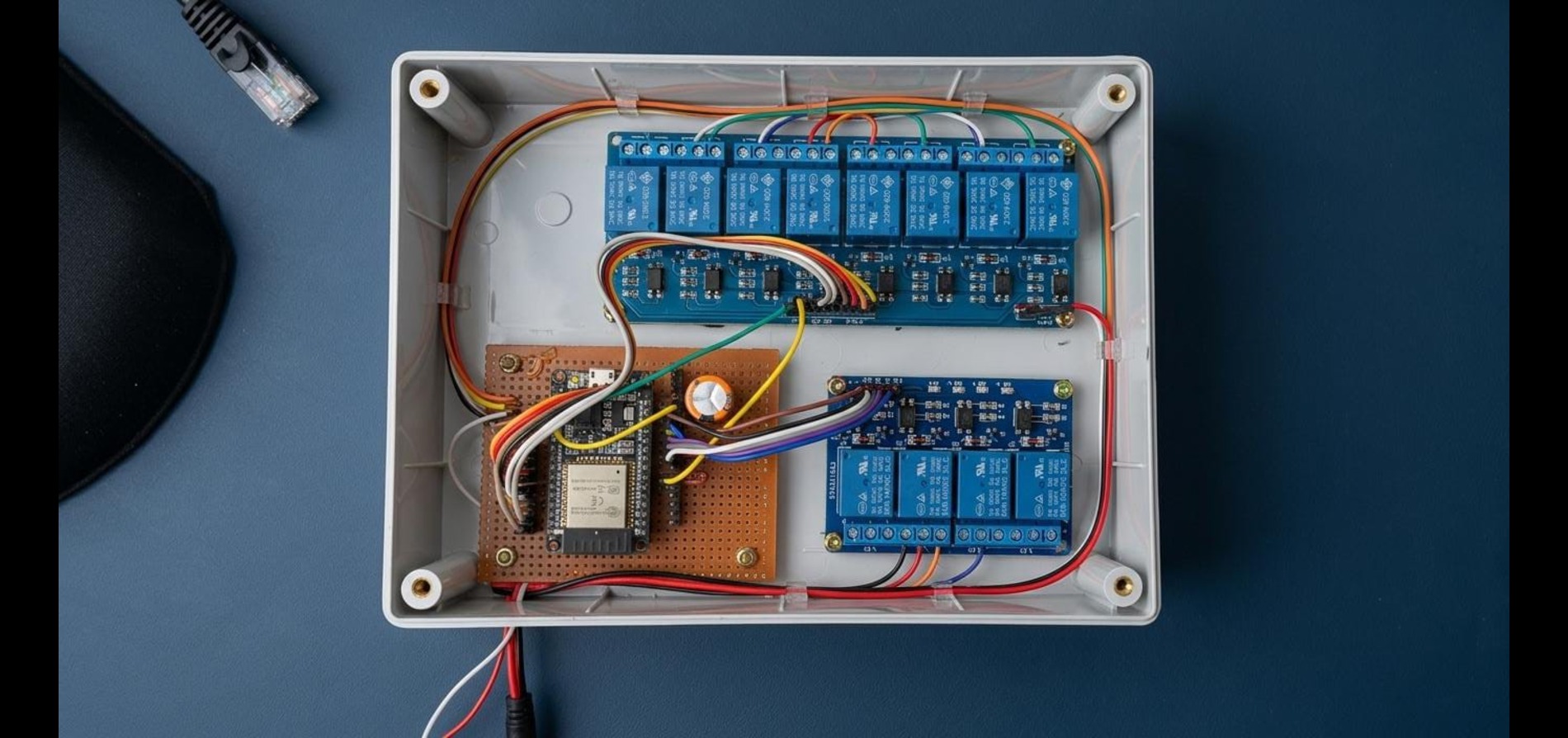

Hardware Overview

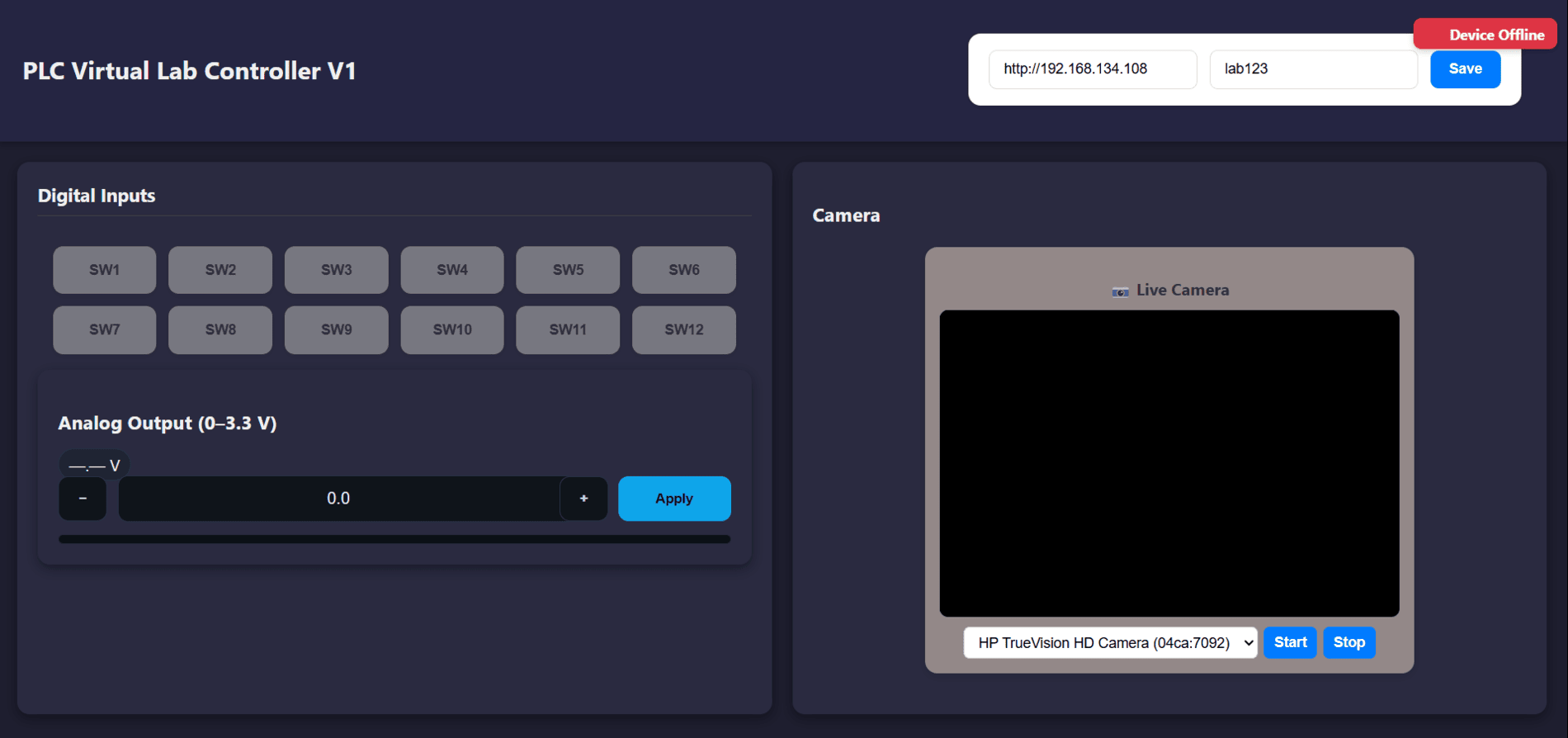

Web Dashboard

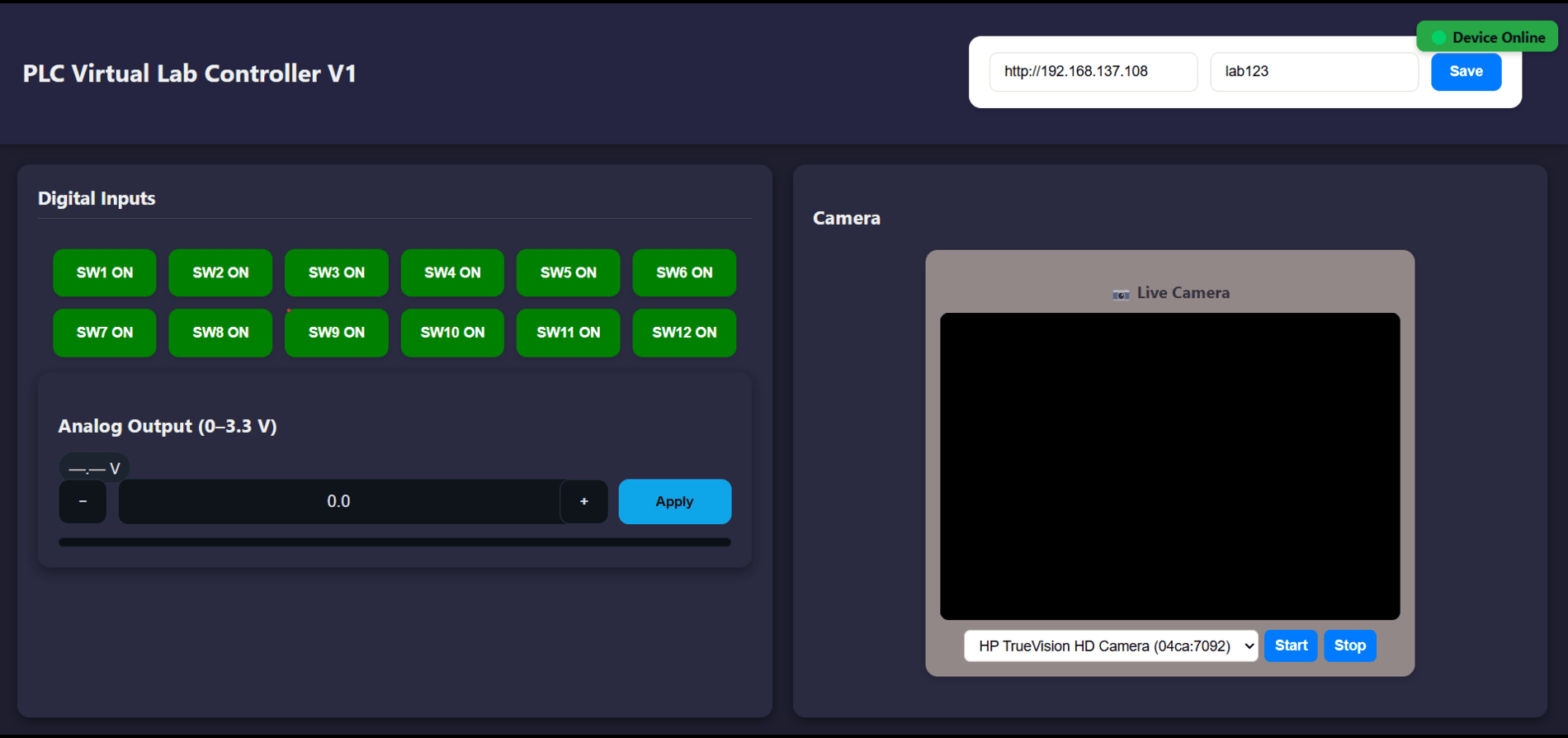

Real-time Monitoring

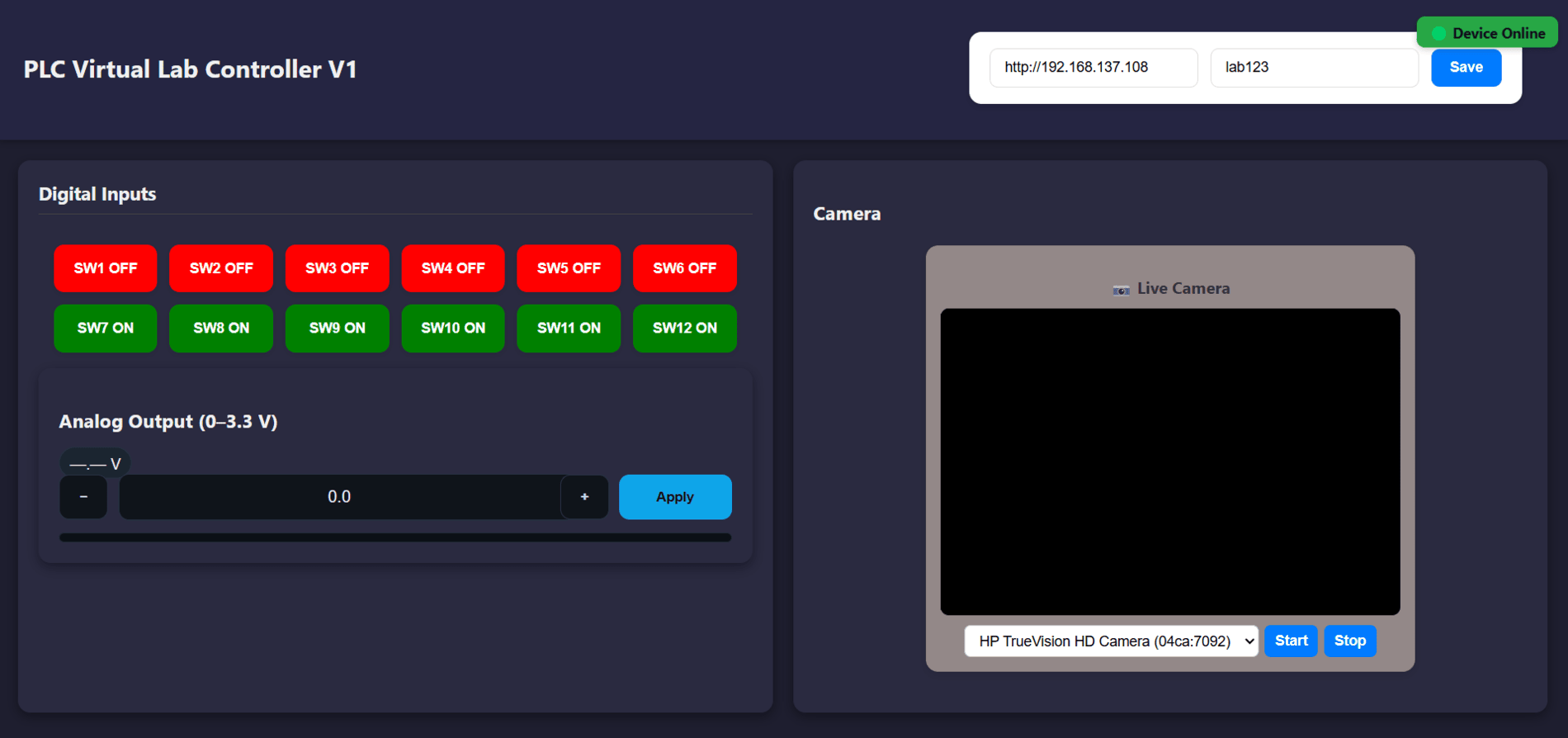

User Control Panel

Applications

Industrial automation
Remote plant monitoring
Smart manufacturing systems
Process control industries

Future Improvements

Mobile app integration
AI-based predictive maintenance
Advanced dashboard analytics
